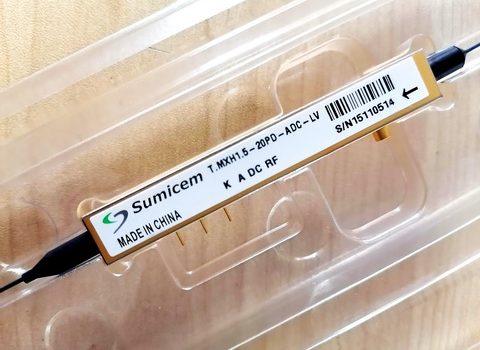

T.MXH1.5-20PD- AD-LV -resize
40Gbps Intensity Modulator, Sumitomo T.MXH1.5-20PD-ADC 40Gbps Intensity Modulator with the Features of Low Drive Voltage, RF VπVoltage 4.0V @20GHz. C and L-Band Operation. Enhanced E/O Bandwidth for up to 40 Gb/s Modulation Speed Low Insertion Loss, 5.0dB Typ. Integrated Monitor Photodiode. Internal Push-pull Structure, Zero Chirped.

40Gbps Intensity Modulator, Sumitomo T.MXH1.5-20PD-ADC

ONLD-600A
DESCRIPTION The laser diode driver consists of four sections: LD bias, back PD current monitor and temperature stabilizer, and voltage-to-current convertor which allows modulation up to 10MHz. It fits for 10-pin or 14-pin butterfly packaged Pump, DFB, SOA, SLED or equivalent. A Graphical user interface (GUI) running on PC make […]

Butterfly Package LD Driver Module with Modulation, Low Noise for ...

ORLD-1200SA
DESCRIPTION The laser diode driver consists of four sections: LD bias, back PD current monitor and temperature stabilizer, and voltage-to-current convertor which allows modulation up to 100kHz. It is  suited for 10-pin or 14-pin butterfly packaged Pump, DFB, SOA, SLED or equivalent. A 4.3-inch touch screen (Optional) make it very […]

Butterfly Package LD Driver Module with Modulation for DFB, SOA, ...

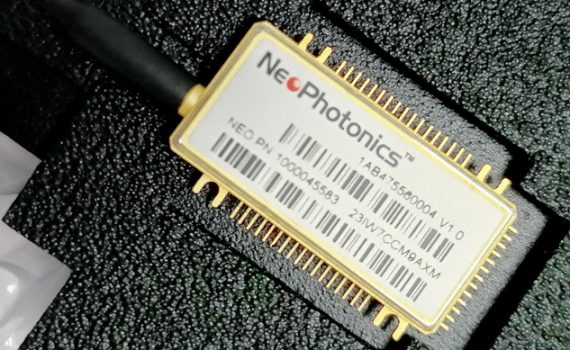

6 copy
Product Overview Designed for high-density linecards and CFP2 pluggable transceivers, the NeoPhotonics Micro-Coherent Receiver provides advanced demodulation to analyze the state-of-polarization and optical phase of a phase-modulated signal relative to an externally-supplied optical reference. This enables the recovery of the phase-polarization constellation of 300 G/s Dual Polarization Quadrature Phase Shift […]

Neophotonics uICR Class 60, 96G Baud Coherent Receiver, DP-16QAM, QPSK, ...

5 - Copy
Product Overview Designed for high-density linecards and CFP2 pluggable transceivers, the NeoPhotonics Micro-Coherent Receiver provides advanced demodulation to analyze the state-of-polarization and optical phase of a phase-modulated signal relative to an externally-supplied optical reference. This enables the recovery of the phase-polarization constellation of 200 G/s Dual Polarization Quadrature Phase Shift […]

Neophotonics uICR Class 40, 64G Baud Coherent Receiver, DP-16QAM, QPSK, ...

1 - Copy
Product Overview Designed for high-density linecards and CFP2 pluggable transceivers, the NeoPhotonics Micro-Coherent Receiver provides advanced demodulation to analyze the state-of-polarization and optical phase of a phase-modulated signal relative to an externally-supplied optical reference. This enables the recovery of the phase-polarization constellation of 100 G/s Dual Polarization Quadrature Phase Shift […]

Neophotonics uICR Class 20, 25G Baud Coherent Receiver, DP-16QAM, QPSK, ...

Standard ICR1
General Specification The intradyne receiver schematic diagram is shown in figure 1. This receiver consists of two 90° optical hybrids and optical detection circuit consisting of PIN photodiodes and TIA amplifiers. The signal input port is SMF pigtail and the LO input ports is PMF pigtail. The balanced detection is achieved […]

Neophotonics Standard ICR , 25G Baud Coherent Receiver, DP-16QAM, QPSK, ...

9
Product Overview NeoPhotonics’ HB-CDM (High Bandwidth – Coherent Driver Modulator) is implemented in a small form factor (4.8 x 24.8 x 12 mm) package which co-packages a quad-channel, differential 96 GBaud driver with an Indium Phosphide-based Mach-Zehnder (MZ) quadrature modulator chip. This new modulator is designed for applications in pluggable […]

Neophotonics CDM Class 60, 96G Baud Coherent Driver Modulator, DP-16QAM, ...

5
Product Overview NeoPhotonics’ HB-CDM (High Bandwidth – Coherent Driver Modulator) is implemented in a small form factor (4.8 x 24.8 x 12 mm) package which co-packages a quad-channel, differential 64 GBaud driver with an Indium Phosphide-based Mach-Zehnder (MZ) quadrature modulator chip. This new modulator is designed for applications in pluggable […]

Neophotonics CDM Class 40, 64G Baud Coherent Driver Modulator, DP-16QAM, ...

20180408_181413 - Copy
DESCRIPTION The high speed photo-receiver Module consist of the key module,  high speed PIN-TIA receiver, which is a differential front-end with high differential gain and a typical bandwidth of 36GHz.The photo-receiver module contains  waveguide-integrated PIN photodiode (PD) and a single chip and limiting amplifier (LA) with limiting output buffer. The […]

40Gbps PIN-TIA Receiver, Fiber Coupled Photo-Detector

16QAM
We can supply any or total of the solutions for Optical Coherent Communication System, which consist of 1. Narrow Line-width Tunable laser, 2. Dual or Single Polarization QPSK/IQ LN modulator, 3. Auto Bias Controller, 4. Wide-band Signal Amplifier, 5. Optical Fiber Amplifier, 6. Integrated Coherent Receiver, 7. Data Acquisition and Signal […]

Solutions for Optical Coherent Communication System

Tunable Laser Source
1250~1650nm Low Degree of Polarization(Polarizaion Extinction Ratio) ASE Wide Spectrum Light Souce The wide spectrum light source consists of wide-spectrum optical semiconductor Lasers. Spontaneous emission produced by energy level transition amplified by the semiconductor Laser is to generate an ultra- broadband spectrum. Different band can be combined to provide various operating spectrum, […]

Low DOP/PER ASE Light Souce, 1250~1650nm, Ultra-wide Spectrum

Narrow Linewidth Laser Module -mini
  DESCRIPTION The narrow line width module is compact laser modules employing the high-performance compact Distributed Bragg Reflection (DBR) Cavity Fiber Laser, which features mode-hop free and very narrow linewidth. It provides a stable, easy-to-use, low cost alternative to other ECL lasers. The module uses reliable, qualified and industry proven […]

Narrow Line-width Fiber Laser, 1k~3kHz, 20~500mW, C-band, Low Noise

T.PMH1.5-5-S - mini2
General Descriptions The Sumitomo/Sumicem .PMH1.5-5-S make up the most comprehensive range of electro-optic phase modulators available on the market for the 1550 nm wavelength band. LN Phase Modulator Test Report (Typical Sample) Testing wavelength: 1550nm Input/output fiber: PM Fiber FC/SPC connector, etc. Test Parameter Test Result Unit Optical Insertion Loss […]

5Gbps Phase Modulator, Sumitomo T.PMH1.5-5-S, Lithium Niobate Modulator

T.SBXH1.5-20PD-ADC-mini
General Descriptions This optical modulator is a Ti:LiNbO3 DQPSK Single-Drive Mach-Zehnder modulator with modulation speed of up to 22.5Gbaud. This optical modulator integrates a monitor PD chip and coupler function for automatic bias control (ABC) for the compensation system of DC-drift and other phenomena. 40Gbps IQ Modulator with the Features […]

40Gbps DQPSK Modulator, Sumitomo T.SBXH1.5-20PD-ADC, Lithium Niobate Fiber IQ Modulator

T.SBXH1.5-20PD-ADC-Pack-mini
Bandwidth 40GHz, DQPSK Modulator, Sumitomo T.SBXH1.5-35PD-ADC, Lithium Niobate Fiber IQ Modulator General Descriptions This optical modulator is a Ti:LiNbO3 DQPSK Single-Drive Mach-Zehnder modulator with modulation speed of up to 50GBaud. This optical modulator integrates a monitor PD chip and coupler function for automatic bias control (ABC) for the compensation system […]

Bandwidth 40GHz, DQPSK Modulator, Sumitomo T.SBXH1.5-35PD-ADC, Lithium Niobate Fiber IQ ...

PAM4 Amplifier
DESCRIPTION The PAM4 RF amplifier is a single input high performance broadband optical modulator driver with very low jitter, 3.3 V swing, with excellent gain and group delay flatness, matched to 38GHz. It is designed for electro-optical test equipment and optical modulator PAM4 driver applications. The driver is intended for […]

25GBaud PAM4 RF Driver, Wide Band Amplifier, Swing 3.3V

Tunable Laser Source
The swept tunable Laser source is based on advanced electrically pumped VCSEL (Vertical Cavity Surface Emitting Laser) technology. It is an attractive laser for FBG distributed fiber sensing, which synchronous scan rate is up to 200Hz. And the free scan rate can reach 100kHz without synchronous signal output. The swept […]

Swept Tunable Laser Source, 1546nm~1554nm, Resolution 8pm, 20mW, 100kHz, High ...

Tunable Laser Source
The fiber coupled Laser source supports any of visible light wavelengths including 405, 450, 488, 520, 638, 660, 670, 685nm and even near-infrared wavelengths including 785, 808, 830, 850, 940nm. The Laser source consists of  fiber coupled semiconductor Laser diode and temperature stabilizer, which ensure stable output power,  spectrum and […]

Visible and Infrared Laser Source, 405nm~940nm Optional, Fiber Coupled

PAM4 BERT -mini
The 400Gbps Bit Error Ratio Tester (BERTWaveE856F) is a 8-lane and multi-rate high performance bit error analyzer supporting FEC. It provides 8-lane bit error test simultaneously, with each lane supporting multi -baud-ratio PAM4 signal from 14.06GBd to 28.90GBd,and diverse code pattern. It also supports the user-defined code patterns, output signal […]

8x50Gpbs Bit Error Ratio Tester, BERTWave E856F, 25GBaud PAM4 Data ...
